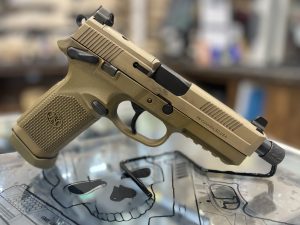

FNH USA FNX-45 TACTICAL .45ACP PISTOL

Improving on the FNP™-45 Tactical, developed for the U.S. Joint Combat Pistol Program, the FNX™-45 Tactical FDE was born and bred for battle. Like its legendary FN forefathers, this combat handgun was designed to not only survive the battlefield, but to emerge victorious. It is the latest in technological advancements in handgun engineering, offering .45 ACP performance and a host of unique features that no other handgun can match. Its 15-round magazine is precisely engineered to take a dive to the prone position and naturally roll up toward the target. The checkered polymer frame has a low-bore axis for reduced felt recoil, enhanced operator control, and a grip angle that provides unmatched natural point of aim.

Specifications:

  • CALIBER: .45 ACP
  • OPERATION: Double-action/Single-action
  • MAG CAPACITY: 15 Rd.
  • WEIGHT: 33.3 oz.
  • BARREL LENGTH: 5.3″
  • OVERALL LENGTH: 8.6″
  • TWIST RATE: 1:16″ RH
  • HEIGHT: 6.5″
  • WIDTH: 1.58″
  • TRIGGER PULL: 8.8 – 12.1 lb.
  • SIGHT RADIUS: 6.4″
  • Magazines: (2) 15RD

Features:

  • Raised 3-dot Trijicon green tritium night sights (standard) allow for one-handed operation
  • The width of the raised night sights perfectly size up the shoulder width of a target at 25 meters
  • Flat Dark Earth finish on slide and frame

SLIDE

  • Stainless steel construction
  • External extractor with loaded chamber indicator
  • Front and rear cocking serrations
  • Slide cut and threaded for optional electronic red-dot sight (not included)
  • Raised night sights for suppressor use

BARREL

  • Cold hammer-forged stainless steel
  • Polished chamber and feed ramp
  • Threaded .578×28 tpi with thread protector

FRAME

  • Polymer construction with replaceable steel frame/slide rails
  • Four interchangeable backstraps with lanyard eyelets
  • MIL-STD-1913 accessory mounting rail
  • Serrated trigger guard
  • OPERATING CONTROLS
  • Fully-ambidextrous decocking/safety lever, slide stop lever, and magazine release

MAGAZINE

  • Polished nickel coated steel body
  • Low-friction follower
  • Polymer base pad

SIGHTS

  • Includes two mounting bases for optional red-dot electronic sights

Includes:

  • Two 15-round magazines with extended base pad
  • Fitted, soft Cordura® nylon case
  • Owner’s manual
  • Four interchangeable backstraps
  • Locking device
  • Sight mounting kit with plates and screws

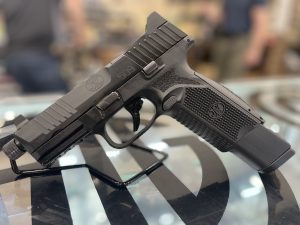

FNH USA 509 TACTICAL 9MM

The FN 509® Tactical, an extension of the FN 509 family, is based on FN’s submission pistol that the U.S. Army tested for its Modular Handgun Trials, but includes the significant improvements to the design that were implemented in the FN 509. The pistol features the company’s patent-pending Low-Profile Optics Mounting System™ that enables the platform to accept more than ten commercially-available miniature red dot (MRD) optics that co-witness with the suppressor-height night sights and remain adaptable to future optics releases with no requirement of direct milling of the slide. The slide cap, for use when not shooting with an optic, has raised sight wings that protect iron sight alignment if the pistol is dropped or jostled, and provides a textured ramp for racking the slide against a belt loop, pant pocket or boot. An FN-signature 4.5-inch, cold hammer-forged, stainless-steel barrel with target crown, ½” x 28 threads that accept the bulk of 9mm suppressors available and thread cap with integrated O-ring to prevent loosening during use complete the top end. Lastly, the 24-round magazines, nearly identical in length to the pistol’s slide, maximize ammunition capacity without impacting carry convenience.

Specifications:

  • Caliber: 9mm
  • Operation: Double-action
  • Capacity: 10 or 17/24 Rd.
  • Weight: 27.9 oz.
  • Barrel Length: 4.5″
  • Overall Length: 7.9″
  • Twist Rate: 1:10″ RH
  • Height: 5.75″
  • Width: 1.35″
  • Trigger Pull: 5.5 – 7.5 lb.
  • Sight Radius: 5.79″

Features:

  • Striker-fired autoloader
  • 5.5 to 7.5 lbs. Trigger pull
  • FN Low Profile Optics Mounting System™
  • Threaded Barrel
  • Suppressor Height Night Sights

Slide:

  • FN Low Profile Optics Mounting System™
  • Sight Protecting Slide Cap
  • External extractor; loaded chamber indicator

Barrel:

  • Cold hammer-forged stainless steel
  • Recessed target crown
  • Polished chamber and feed ramp
  • 1/2” x 28 threaded Barrel
  • O-Ring retention thread cap

Frame:

  • Polymer construction with replaceable steel frame/slide rails
  • Enhanced grip texture which enables faster follow-up shots in all conditions
  • Interchangeable backstraps
  • MIL-STD-1913 accessory mounting rail

Operating Controls:

  • Fully ambidextrous slide stop lever and magazine release

Magazine:

  • High visibility, low-friction follower; polymer base with black finish

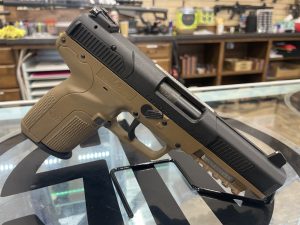

The FN Five-seveN® pistol was developed in the early 1990s and features a cold hammer-forged barrel that is chrome-lined for extended service life. The polymer-framed FN Five-seveN® offers single-action operation, low felt recoil, 20-round magazine capacity, and is equipped with an ambidextrous, forward-mounted manual safety, and an accessory rail that accepts tactical lights and lasers.

PRIMARY FEATURES

  • Adjustable 3-dot sights (standard)
  • Adjustable rear combat sight
  • Low recoil
  • High-energy projectiles

SLIDE

  • One-piece machined steel slide
  • Polymer cover
  • Front and rear cocking serrations

BARREL

  • Cold hammer-forged stainless steel
  • Chrome-lined chamber and bore

FRAME

  • Polymer construction
  • Checkered grip
  • MIL-STD-1913 accessory mounting rail
  • Serrated trigger guard

OPERATING CONTROLS

  • Fully ambidextrous safety lever
  • Reversible magazine release

MAGAZINE

  • Polymer body
  • Low-friction follower
  • Polymer base

SHIPS WITH

  • (2) 20-round Magazine
  • Owner’s manual
  • Locking device
  • Lockable fitted hard case

SPECIFICATIONS:

  • CALIBER: 5.7x28mm
  • OPERATION: Single-action
  • MAG CAPACITY: 20 Rd.
  • WEIGHT: 21 oz. (without mag)
  • BARREL LENGTH: 4.8″
  • OVERALL LENGTH: 8.2″
  • TWIST RATE: 1:9″ RH
  • HEIGHT: 5.7″
  • WIDTH: 1.4″
  • TRIGGER PULL: 4.4 – 7.87 lb.
  • SIGHT RADIUS: 7.0″
